The pin names of the Fysetc Spider H723 in the firmware

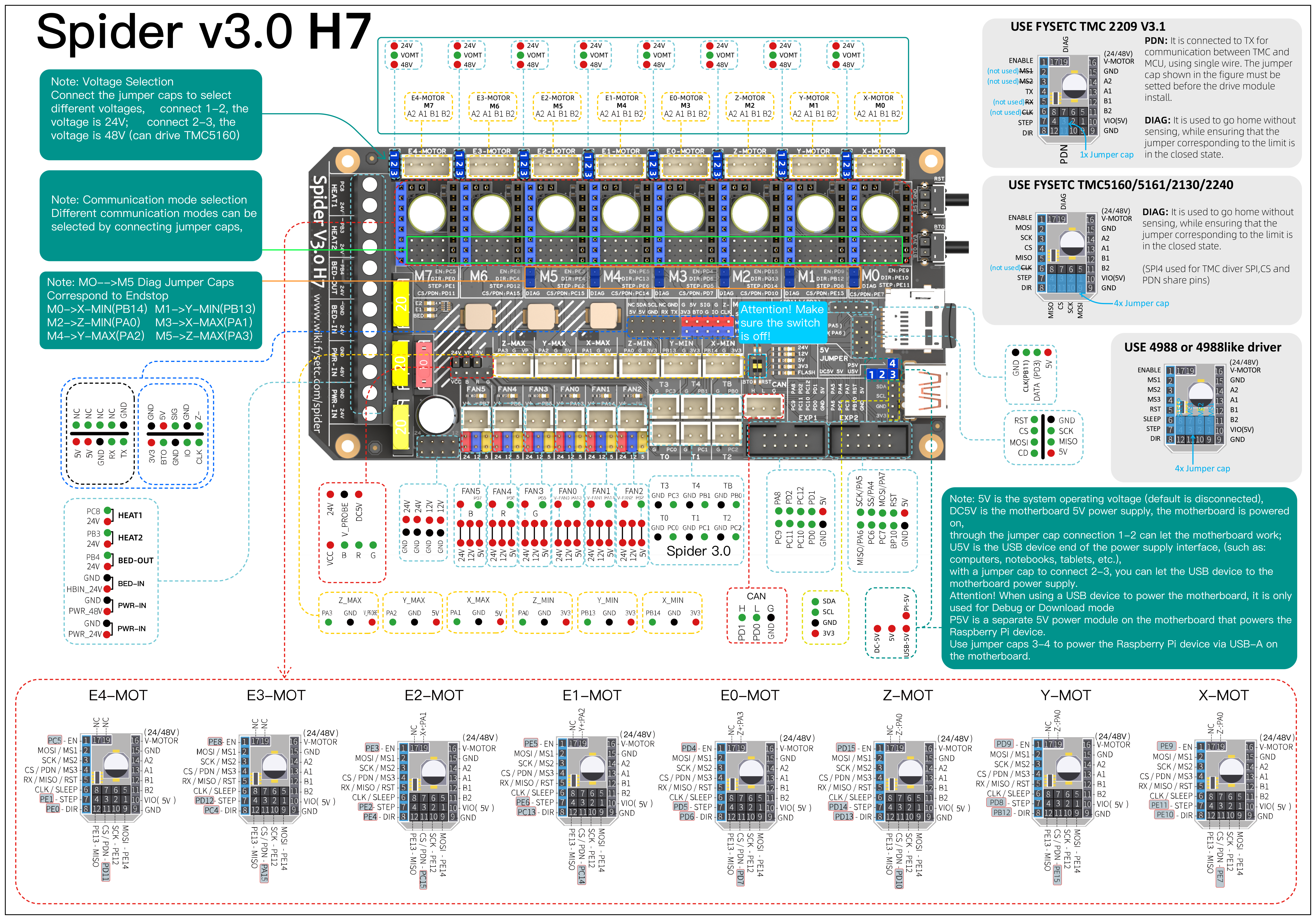

Fysetc Spider H723 Pinout Diagram

Fysetc Spider H723
Fysetc Spider H723 Pinout

Fysetc Spider H723 Driver Pins in Firmware

Driver pin numbers. They are separated into driver number.

Pin Type 0 1 2 3 4 5 6 7
Enable Pins PE_9 PD_9 PD_15 PD_4 PE_5 PE_3 PE_8 PC_5
Step Pins PE_11 PD_8 PD_14 PD_5 PE_6 PE_2 PD_12 PE_1
Direction Pins PE_10 PB_12 PD_13 PD_6 PC_13 PE_4 PC_4 PE_0
UART Pins PE_7 PE_15 PD_10 PD_7 PC_14 PC_15 PA_15 PD_11

Fysetc Spider H723 Other Pins in Firmware

If more than one pin name is availble, either name can be used in the firmware (config.g).
If the pins aren’t in the table (due to not having a special name), then the pin itself can be used in the form of PA0, PA.0, PA_0, A0, A.0 or A_0.

Pin Number Pin Name 1 Pin Name 2 Pin Name 3 Pin Name 4 PWM Hardware Timer
PA_0 zmin       Timer 2
PA_1 xmax       Timer 2
PA_2 ymax       Timer 15
PA_3 zmax       Timer 2
PA_8 btnenc
PA_13 fan0.pwm
PA_14 fan1.pwm
PB_0 bedtemp       Timer 3
PB_1 e4temp       Timer 3
PB_2 fan2.pwm
PB_3 e2heat
PB_4 bed
PB_5 LED.G
PB_6 LED.R       Timer 4
PB_7 LED.B       Timer 4
PB_8 scl
PB_9 sda
PB_11 neopixel       Timer 2
PB_13 ymin
PB_14 xmin
PC_0 e0temp
PC_1 e1temp
PC_2 e2temp
PC_3 e3temp
PC_6 btnen1       Timer 3
PC_7 btnen2       Timer 8
PC_8 e1heat
PC_9 beep
PC_10 lcdd4
PC_11 lcden
PC_12 lcdd5
PD_3 status

Configured SPI connections

The below SPI channels are preconfigured in the firmware.
Where NoPin is present, then that pin is not configured by default.

SPI Channel CLK MISO MOSI Hardware or Software Use
0 PA_5 PA_6 PA_7 Hardware SD Card
1 NoPin NoPin NoPin Hardware
2 PC_10 PC_11 PC_12 Hardware WiFi
3 NoPin NoPin NoPin Software
4 NoPin NoPin NoPin Software
5 NoPin NoPin NoPin Software
6 PE_12 PE_13 PE_14 Hardware Drivers
7 NoPin NoPin NoPin Hardware
8 NoPin NoPin NoPin Hardware
